MSW-25
MSW-25
1
  • Type：Water proof power supply
  • Name：MSW-25
  • NEXT：MSW-20

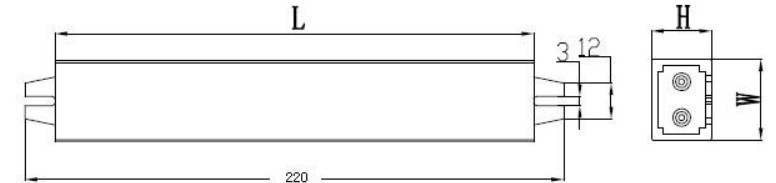

Features Specifications Drawings
1. High efficiency/Energy saving; 94% efficiency, PF≥0.98.
2. Saving& Stability; Short-circuit/Over-lading/Over-voltage/Over-current protection.
3. High Stability; 8 hours 100% full load, Switching impulse test, aging and low temperature test.
4. Unique design; Constant Voltage ensures the LED Voltage stability, IP68.
5. Specific features; with DC electric ceiling fan, Fan switcher automatic control.
6. Wide Input Range; 85V-265V
25w  MS-25-24V
Model MS-25-12V
Specification
DC output voltage 12V 24V
Output voltage error（Note：2） ±2% ±1%
Rated output current 2A 1A
Output current rage 0-2A 0-1A
Wave and noise 100mVp-p 100mVp-p
Efficiency 76% 80%
AC input voltage range 90-250VAC 47~63Hz
Input current 0.25A/230A
AC Inrush current Cold-start current 30A/230V
Leakage current <0.5mA/240VAC
Overload proctection 105%-150%Type:Foldback:current limiting reset:auto recovery
waterproof rank IP67
Setup rise hold up time 200ms,100ms,30ms
Withstand voltage I/P-OP:3kvAC 1minute
 I/P-FG:1.5KvAC 1minute
 O/P-FG:0.5KvAC 1minute
Working temperature and humidity 0~40℃@100%put
 0~10℃@80%put
 50℃@60%put
Application LED lamp,LED Strip light,LED neon flex light,LED lighting system
