MSC-650
MSC-650
1
2

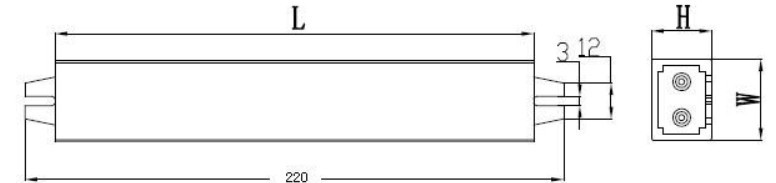

Features Specifications Drawings
1. High efficiency/Energy saving; 94% efficiency, PF≥0.98.
2. Saving& Stability; Short-circuit/Over-lading/Over-voltage/Over-current protection.
3.High Stability; 8 hours 100% full load, Switching impulse test, aging and low temperature test.
4. Unique design; Constant Current ensures the LED Current stability, IP68.
5. Specific features; with DC electric ceiling fan, Fan switcher automatic control.
6. Wide Input Range; 85V-265V
Model MS-650MA
DC output voltage 9-12V
Output voltage error（Note：2） ±2%
Power 6-8W
Wave and noise 100mVp-p
Efficiency 88%
AC input voltage range 90-250VAC 47~63Hz
Input current 0.65A/650MA
Leakage Power <0.5W/240VAC
Overload proctection 105%-150%Type:Foldback:current limiting reset:auto recovery
waterproof rank IP67
Setup rise hold up time 200ms,100ms,30ms
Withstand voltage I/P-OP:3kvAC 1minute
 I/P-FG:1.5KvAC 1minute
 O/P-FG:0.5KvAC 1minute
Working temperature and humidity 0~40℃@100%put
 0~10℃@80%put
 50℃@60%put
Application LED lamp,LED Strip light,LED neon flex light,LED lighting system
