MSA-60
MSA-60
  • Type：LED Adapter
  • Name：MSA-60
  • PREV：MSA-36
  • NEXT：MSA-72

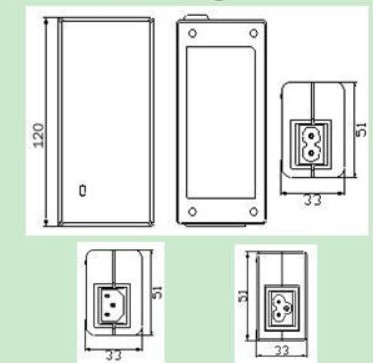

Features Specifications Drawings
1. High efficiency/Energy Saving; 94% efficiency, PF≥0.98.
2. Saving& Stability; Short-circuit/Over-lading/Over-voltage/Over-current protection.
3. High Stability; 8 hours 100% full load, Switching impulse test, aging and low temperature test.
4. Appearance: Small size with plug.
5. Specification, Soft starting current, reduces input AC Current impact
6. Wide Input Range：85V-265V
1. Range Voltage:..........AC80-265V
2. Input Frequency……50HZ/60HZ
3. Output Power:............60W
4. Output Voltage:..................5V/12V/24V/36V
5. Max. Current:........................12A
6. Over Voltage Protection:...............120%min
7. Over Current Protection:...............120%min
8. Short Protection:...............Auto Recovery
9. Load Regulation:...............+-3-5%
10.Operating Temperature..............0-40
11. Storage Temperature:...............-20-+85度
12.Operating Relative Humidity:.........5-95%RH
13. With standing Voltage:.......AC3000V(Max),5mA(Max)
14. Insulation Resistance:DC500V 100M(Min)
